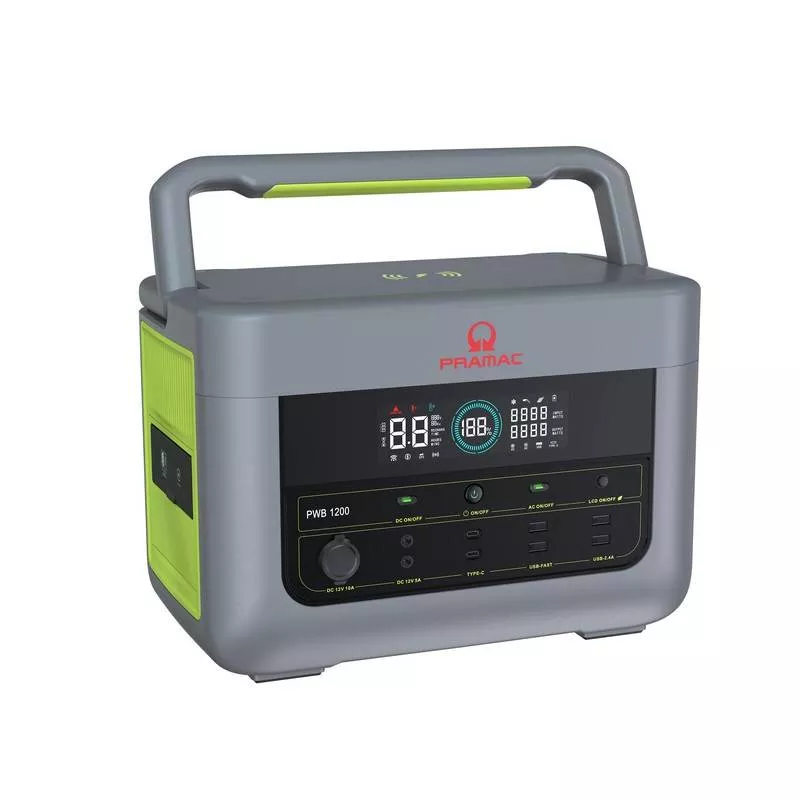

Portable power station 1200W PWB1200 - Pramac

The Portable Power Station (PWB) is a battery-based energy storage system ideally suited to a wide range of applications, providing reliable power in the most cost-effective and environmentally-friendly way. The device can be recharged from the main grid, a generator or a solar panel. PWB guarantees efficiency, simplified maintenance and low environmental impact. Control is in real time via the monitoring screen.

• Li-ion LFP batteries
• Wireless charger
• Solar recharging
• Quick charger included: 1h at 80% power
• Parallel connector
• EPS emergency power supply

Power output:

• Output power: 1200W
• Max. power (1.5 s) : 2400W
• Frequency : 50 Hz
• Voltage : 230V
• Phase(s) : 1

Battery specifications:

• Battery type: Li-ion LFP
• Nominal DC battery voltage: 25.6V
• Battery life at 80% DoD: 2000 cycles
• Nominal battery capacity (size): 1075W/h

Input power:

• Max. load power : 800W
  • a) Charging time at 80%: 1h
  • b) 100% charging time: 2h
• DC solar input power: 400W
  • a) DC/solar charging time at 80% (with 400W and good weather conditions): 2.1h
  • b) DC/solar charging time at 80% (with 200W and good weather conditions): 4h
• Cigarette-lighter socket (12V DC): 8A
• Charging time with cigarette lighter at 80%: 11h

Installation data:

• Length (L): 376 mm
• Width (W): 215 mm
• Height (H): 262 mm
• Weight: 16 kg
• Operating temperature range : -10...40°C
• Temperature range for recharging: 0...40°C
• Box dimensions (WxLxH): 455x295x365 mm
• Total weight (incl. box) : 18 Kg
• IP20

Equipment, controls and connections:

• Inverter overload protection
• Inverter protection in the event of overheating
• Inverter low battery protection
• Control panel
• Battery status
• MPPT solar charge controller
• Parallel connector

Output sockets:

• 2x AC Schuko 230V sockets
• 1x Cigar-lighter socket (DC 12V/10A)
• 2x DC 6514 (12 V/5 A)
• 2x USB-A 12 W maximum (5 V/2.4 A)
• 2x USB-A fast 24 W maximum (5/9/12 V | 3/2,2/2 A)
• 2x USB-C 100 W maximum (5/9/12/15/20 V | 3/5 A)
• 1x Wireless charger

Options (please contact us):

• Solar panel kit for autonomous charging
• Parallel connection kit to multiply power and capacity

Pramac PWB1200 portable power station, from Prolutech.
