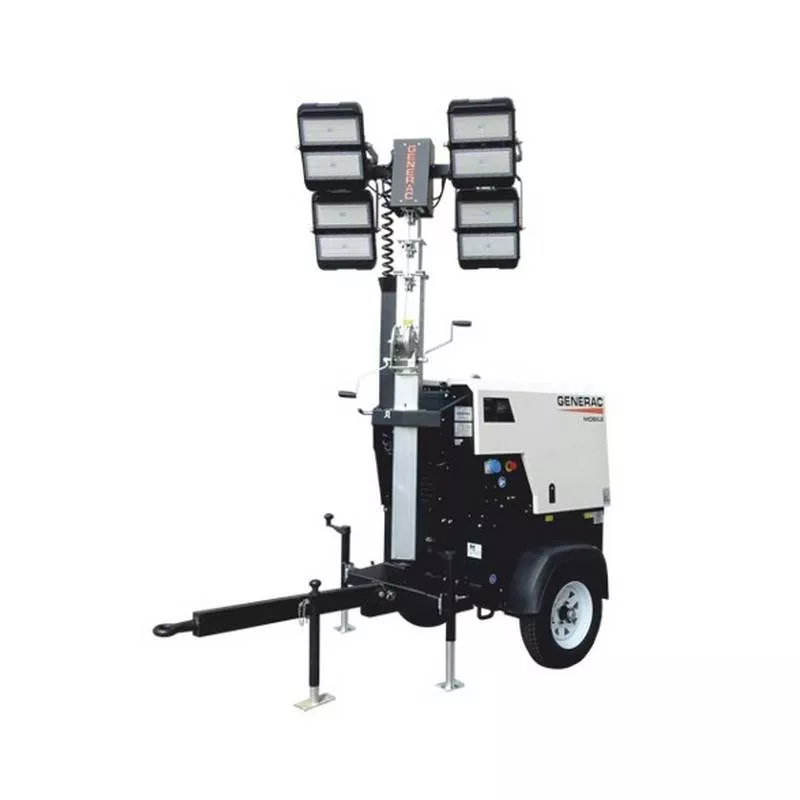

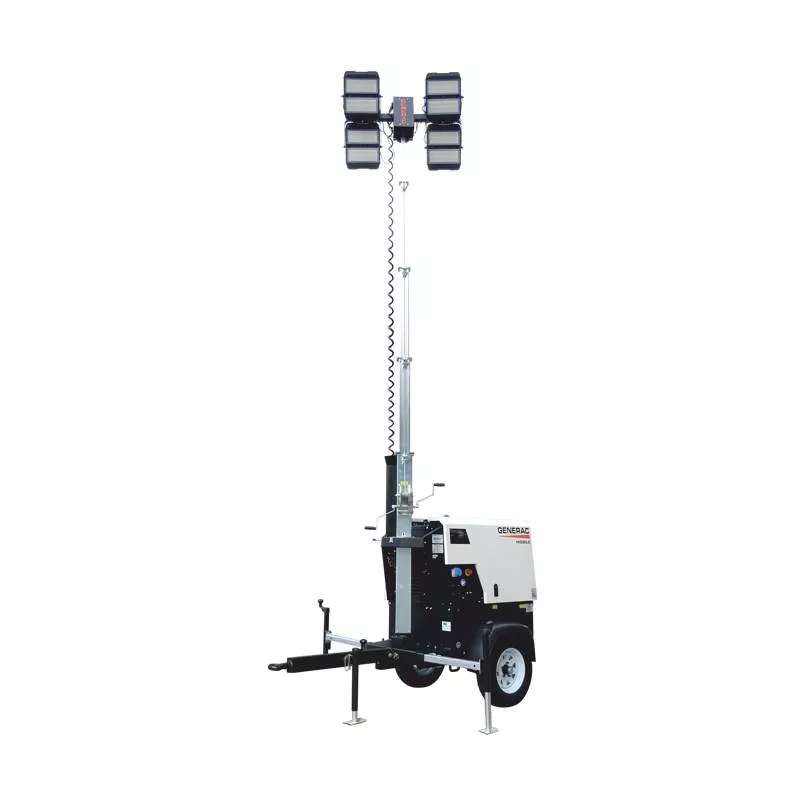

Lighting mobile trailer PRO-GLT4M-Y2-B

Mobile lighting trailer with 4 LED floodlights and manual lifting system with double-handle winch.

Latest-generation LED lamps
High-efficiency 4x320W LED spotlights with higher luminous flux and a long life of 50,000 working hours!
Large swing doors for improved accessibility
Two large vertical swing doors provide full access to all technical components for safe, fast and convenient maintenance.
Simplified control panel
The new control panel is easier to use, with the new DSE 3110 digital controller able to manage all lighting tower functions. Thanks to a window on the door, the digital controller is visible even when the door is closed. The control panel is completed by a 16A power socket, circuit breakers, fuses, fuel level gauge, ground pin and emergency stop button. The DSE L401-MKII controller is available as an option.
Darkness sensor and timer
A darkness sensor is available as an option, as is the timer, which is available when the DSE L401-MKII controller is installed.
Low environmental impact
Thanks to the low power consumption of the LED floodlights, the PRO-GLT4M can be operated with a small (2-cylinder) engine. This significantly reduces the unit's fuel consumption and carbon emissions.
Large fuel tank with fluid retention tank
All GLT models feature a plastic fuel tank, which eliminates rust problems and reduces the unit's overall weight. A fluid sump is fitted as standard to prevent any risk of leakage. The large fuel tank capacity guarantees long autonomy and reduces refuelling costs: an ideal solution for use in remote areas!
Construction trailer with leaf-sprung axle
The PRO-GLT4M is fitted as standard with a leaf-sprung axle, which reduces vibrations during transport and improves maximum towing speed compared to previous models. The long folding drawbar optimizes storage and transport dimensions.
Compact design
GLT4s are designed to be loaded in large quantities into a 13.6 truck or a 40″ HC container, a perfect solution for reducing transport costs! What's more, attachment points ensure greater safety during transport.

Technical specifications of the lighting trailer :

• Minimum dimensions (L x W x H) : 1656 x 1264 x 2433 mm
• Maximum dimensions (L x W x H) : 2756 x 2166 x 6777 mm
• Dry weight : 705 kg
• Manual mast lift system
• 340° mast rotation
• Floodlights : 4 x 320 W G5 LEDs
• Luminous flux 211200 Lm
• Illuminated area (1 lux min) : 7900 m²
• Engine : Yanmar 2TNV
• Engine cooling : Liquid
• Cylinders (number) : 2
• Engine speed (50/60 Hz) : 1500 / 1800 rpm
• Alternator (50/60 Hz) : 3.5 kVA 230 V / 4.2 kV 240 V
• Power socket (16A) √
• Input socket (16A) Optional
• Average sound pressure : 60 dB(A) @ 7m
• Tank capacity (gross/net) : 200/180 l
• Operating time : 225 h
• Liquid containment (110%) √
• Wind speed resistance : 80 km/h

Applications example:

• Lighting for night work
• Worksite tilt lighting
• Parking lot lighting
• Construction lighting
• Temporary lighting

Mobile LED lighting trailer.
