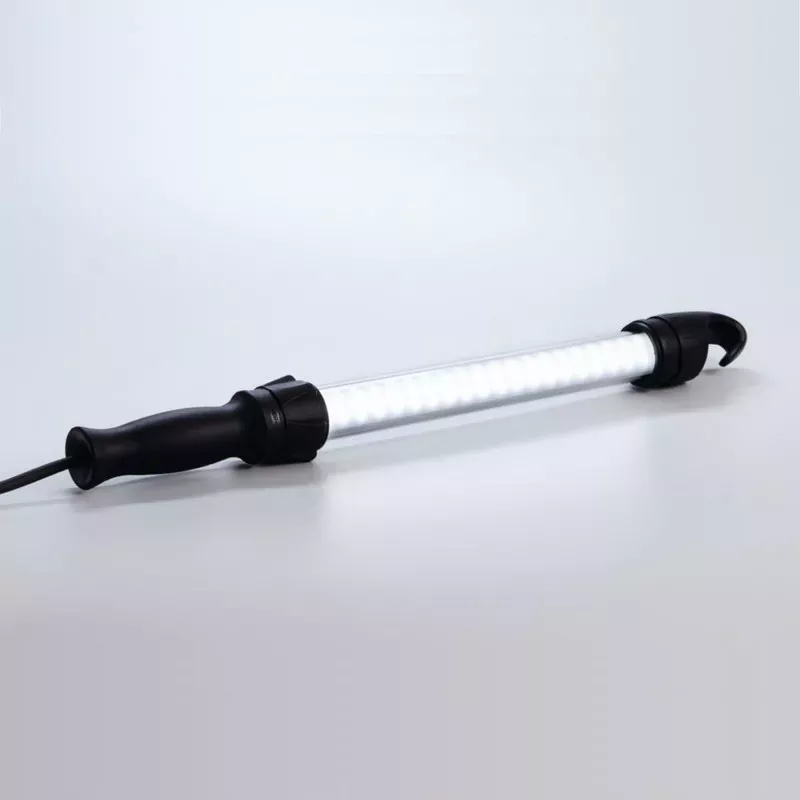

ATEX 24V LED Hand Lamp

The 6149 hand-held inspection light provides flexible illumination wherever light is needed. Its advanced LED technology, specially developed electronics for long life, and high energy efficiency make it a top-of-the-range professional light.

Its innovative design makes it extremely slim and light. Thanks to its lockable suspension hooks and anti-roll protection, this ATEX hand lamp is perfectly suited to industrial environments.

Technical data :

• Rated operating voltage AC: 24 ... 48 V
• Frequency range: 50 - 60 Hz
• Lamp wattage: 13W
• Light color: neutral white
• Light distribution: with diffuser
• Luminous efficacy: 104 Im/W
• Luminous flux: 1396 lm
• Color rendering: ≥ 80
• Color temperature: 5000 K
• Ambient temperature : -40 °C ... +60 °C
• Degree of protection: IP66 / IP67
• Gas explosion protection: II 2 G Ex d IIC T4 Gb
• Dust explosion protection: II 2 D Ex tb IIIC T100 °C Db
• Class II (protective insulation)
• Case material: aluminum
• Silicone-free
• Tube material: polycarbonate
• Fine-wire terminal: 1.50 mm² maximum
• Connecting cable type: H07RN-F 2x1.5 mm²
• Cable length: 10 meters
• Dimensions: Length 595 mm / Diameter 52 mm
• Weight: 2.45 kg

PROTECTIONS :

Ex d IIC T4 Gb

Ex tb IIIC T100 °C Db

II 2 G Ex d IIC T4 Gb

II 2 D Ex tb IIIC T100 °C Db
