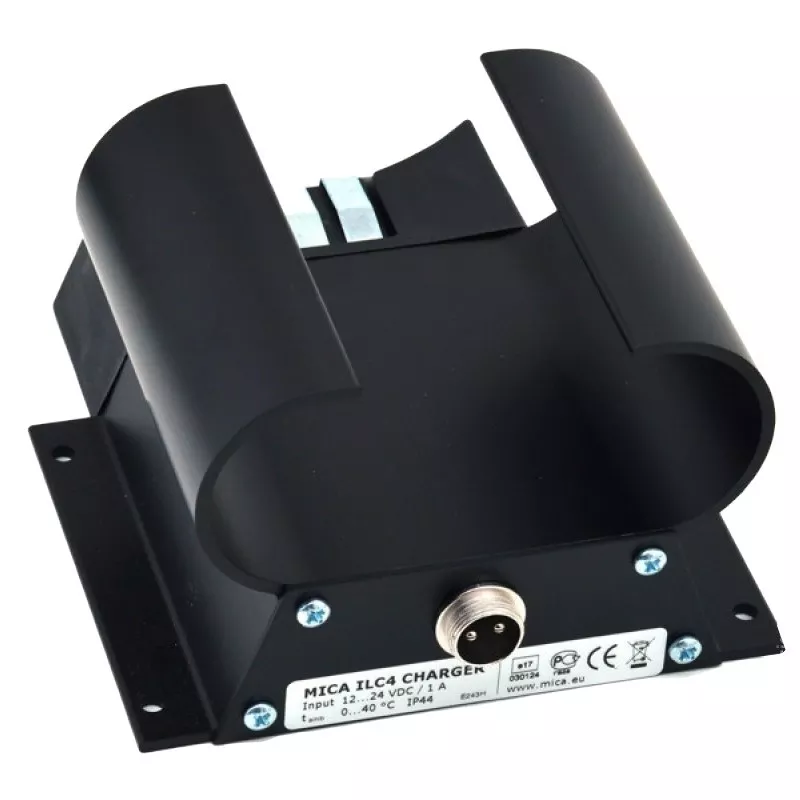

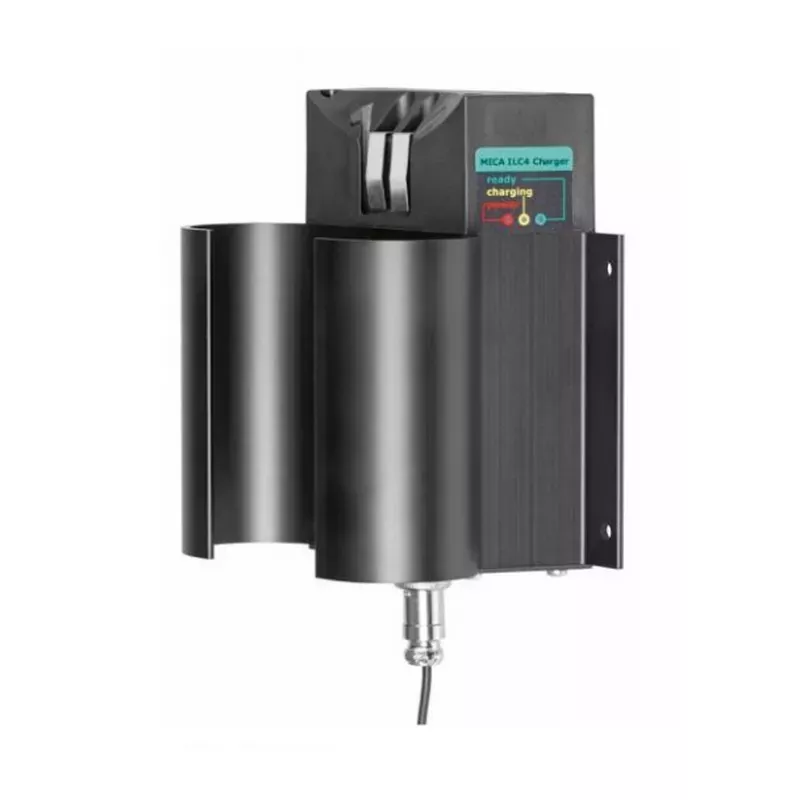

ILC-4 12-24V individual charger

Technical specifications

• Certifications: EMC: Directives 89/336/EEC, Cert. No. e17*72/245/EY, No. 030124, Others: ISO 7637-22004, 2006/28/EY
• Materials: High-impact PA / Aluminium
• Input voltage: 12…24 VDC
• Charging temperature:  0°C … +40°C
• Current charge: 800mA
• Slow charge: 100mA
• Recharge time: 6 hours
• Protection rating: IP44
• Weight: 485 g
• Dimensions: 153 x 138 x 88 mm
• Mounting: Wall mounting, vertical or horizontal
• Compatible products: IL-800 Zone 0, IL-800 Zone 1
• Other features:
  • Sophisticated charging and battery protection:
  • Charge curve control,
  • Maximum battery voltage evaluation (for slow charge switchover),
  • End of charge after 12 hours (slow charge switchover),
  • Ambient temperature control.
• Essential accessories: IL-2 mains adapter ref LA42-IL2

Option (highly recommended)

IL-2 mains adapter ref LA42-IL2

Charger for IL800 projectors only, references LA42-IL800-0 and LA42-IL800.

Non-ATEX device.
