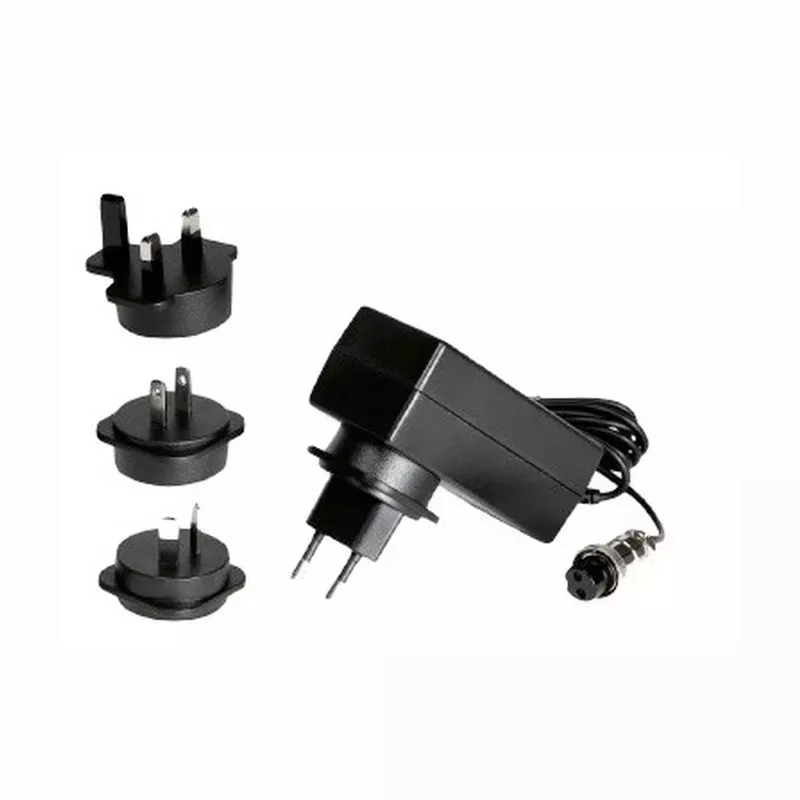

IL-2 Transformer/Mains Adapter

Mains adapter/transformer for ILC chargers

Technical specifications:

• Certification: EMC Directive: 89/336/EEC as amended by 91/263/EEC; EN 55022 (B), EN 61000-3-2 (A); EN 61000-3-3 (Per spec.); EN 55024; IEC 61000-4-2 (B); IEC 61000-4-3 (A); IEC 61000-4-4 (B); IEC 61000-4-5 (B); IEC 61000-4-6 (A); IEC 61000-4-8 (Per spec.); IEC 61000-4-11 (B/C/C);
• Input voltage: 90-265VAC, 47-63Hz
• AC connection type: Wall socket
• Output voltage: 12 VDC (11.4-12.6V)
• Output current: 2 A
• Protection rating: IP20
• Operating temperature: 0°C …+40oC
• Weight: 175g
• Dimensions: 97(L) x 45(W) x 55-76(H) mm
• Cable: Length 1.8 m
• Compatibility: European, US and UK sockets.
• Quick connection to chargers, 2-pin DC output.

Compatibility

Suitable for the ILC4 charger for our IL800 projector lamps.

Non-ATEX device
