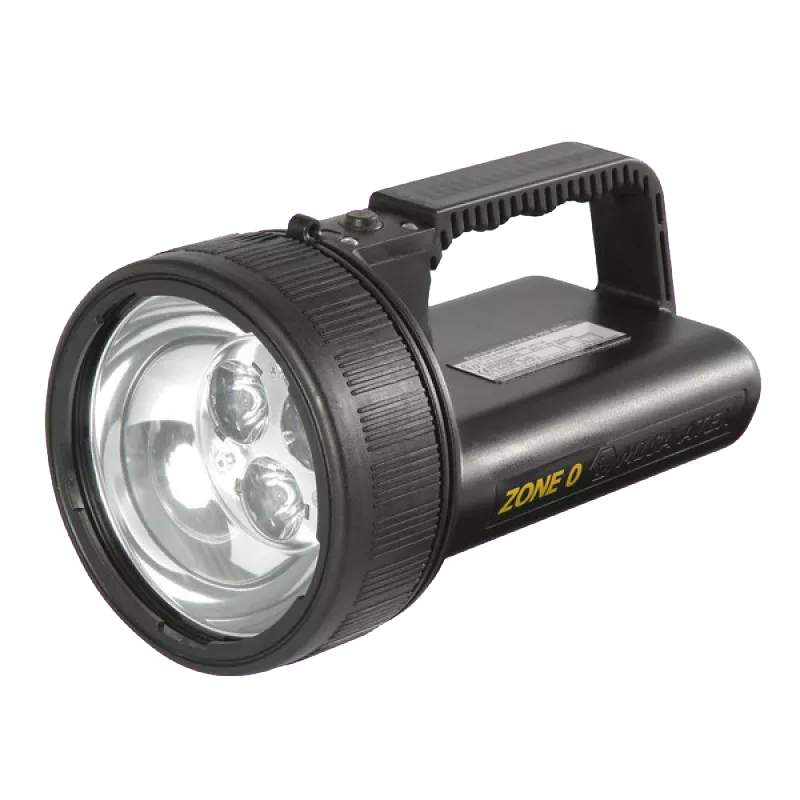

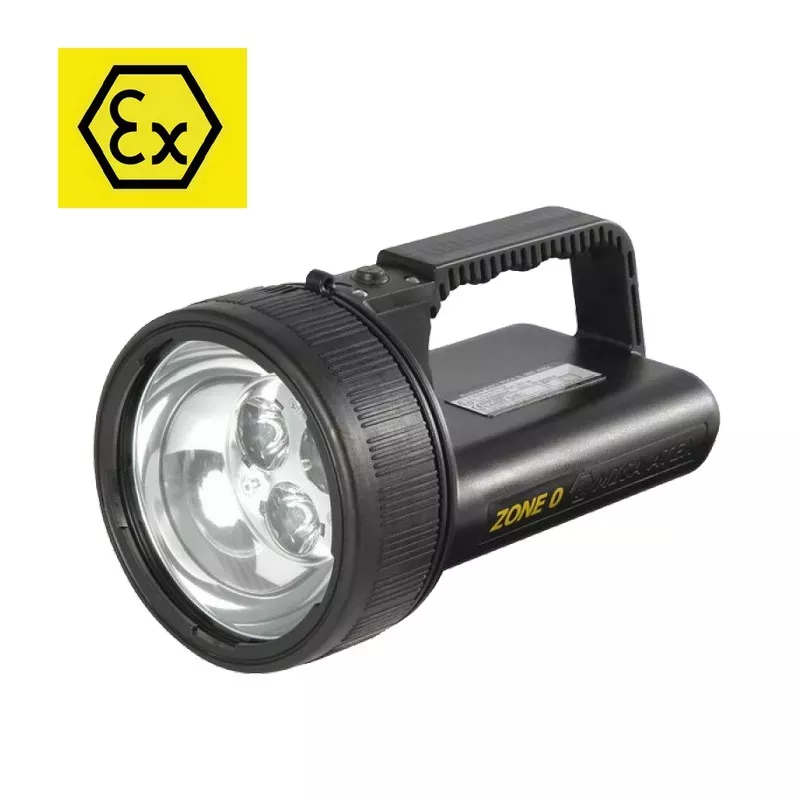

LED ATEX Flashlight IL800

Rechargeable LED flashlight ATEX Zone 0 - Explosive atmospheres.

(also available in ATEX Zone 1 version, please consult us)

Technical data:

• Operating temperature : -20°C ... +40°C
• Materials: antistatic, impact-resistant polypropylene
• Glass : Reinforced glass (5 mm)
• Beam type: Narrow (N) or Wide (W)
• Light source: 3 high-power LEDs
• Luminous flux: 200 (high intensity) / 80 lumens (low intensity)
• Service life: 50,000 h
• Power supply: 6V NiMH rechargeable battery
• Autonomy: 6 hours (high intensity) / 12 hours (low intensity)
• Charging time: 5.5 hours
• Protection rating: IP 67
• Dimensions: 121 x 121 x 216 mm
• Weight incl. battery: 1.1 kg
• Warranry : 2 years (Battery 6 months)

Accessories to be added (not included):

To enable the lamp to operate:

• Individual charger LA42-ILC-4 12-24VDC Ref. LA42-ILC4 (Warning: non-ATEX accessory)
• Transfo. Mains adapter 230VAC LA42-IL2 Ref. LA42-IL2 (Warning: non ATEX accessory)

Protection classes and modes:

• ATEX zone - Classification G (Gases): Zones 0, 1 and 2 / Gas groups: IIA, IIB, IIC
• Classification D (Dust): Zones 21 and 22 / Dust groups: IIIA, IIIB, IIIC
• Temperature classification: Gas: T4 / Dust: 100°C
• Certifications : ATEX: TÜV 10 ATEX 7878 / IECEx: IECEx TUR 11.0008
• Other standards: IEC 60079-0:2007-10 Ed. 5.0; IEC 60079-11:2006-07 Ed. 5.0; IEC 60079-26:2006-08 2nd Ed.; IEC 60079-28:2006-08 1st Ed.; IEC 60079-31:2008-11 Ed. 1.0
• Type of protection: II 1G Ex ia IIC T4 Ga / II 2D Ex tb IIIC 100ºC IP67 Db

Prices on request, for more information click here or contact our sales department on +33 974 777 447.

IL800 ATEX LED work lamp, lighting system from Prolutech.
